ENERZOLVE · Smart Grid Unit

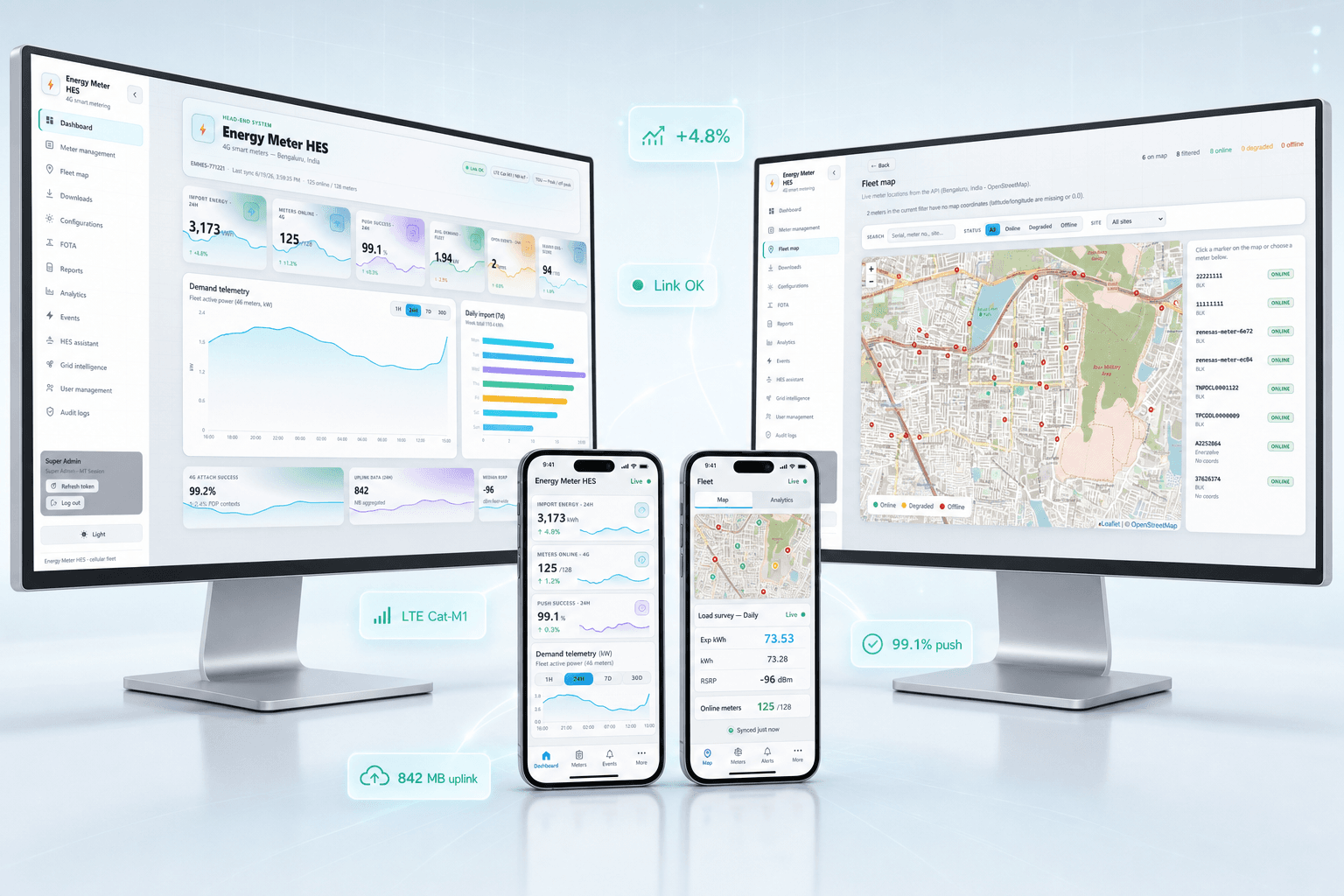

Real-time Head End System (HES)
Monitor every energy meter live — consumption, sync latency, and DLMS sessions in one unified dashboard.
Smart Energy Meters and Energy Metering Solutions
AMI-ready smart energy meters for commercial, industrial, and utility applications,
with real-time monitoring, secure communication, and reliable long-term performance.
Our Products
Choose from our range of advanced metering solutions built for accuracy, durability, and seamless IoT integration.
Technical Specifications
Single Phase Smart Energy Meter
Built for accurate energy measurement, secure communication and reliable long-term performance.
Reference Voltage240 V AC, L-N
Operating Voltage0.7–1.2 × Un
Basic Current10 A
Maximum Current60 A
Starting Current20 mA
Frequency50 Hz ±5%
Power ConsumptionLow Power Design
Current SensingPrecision Shunt
Impulse Withstand6 kV
AC Voltage Withstand4 kV RMS
Magnetic ImmunityHigh
Learn what each rating means in our guide to smart energy meter specifications.

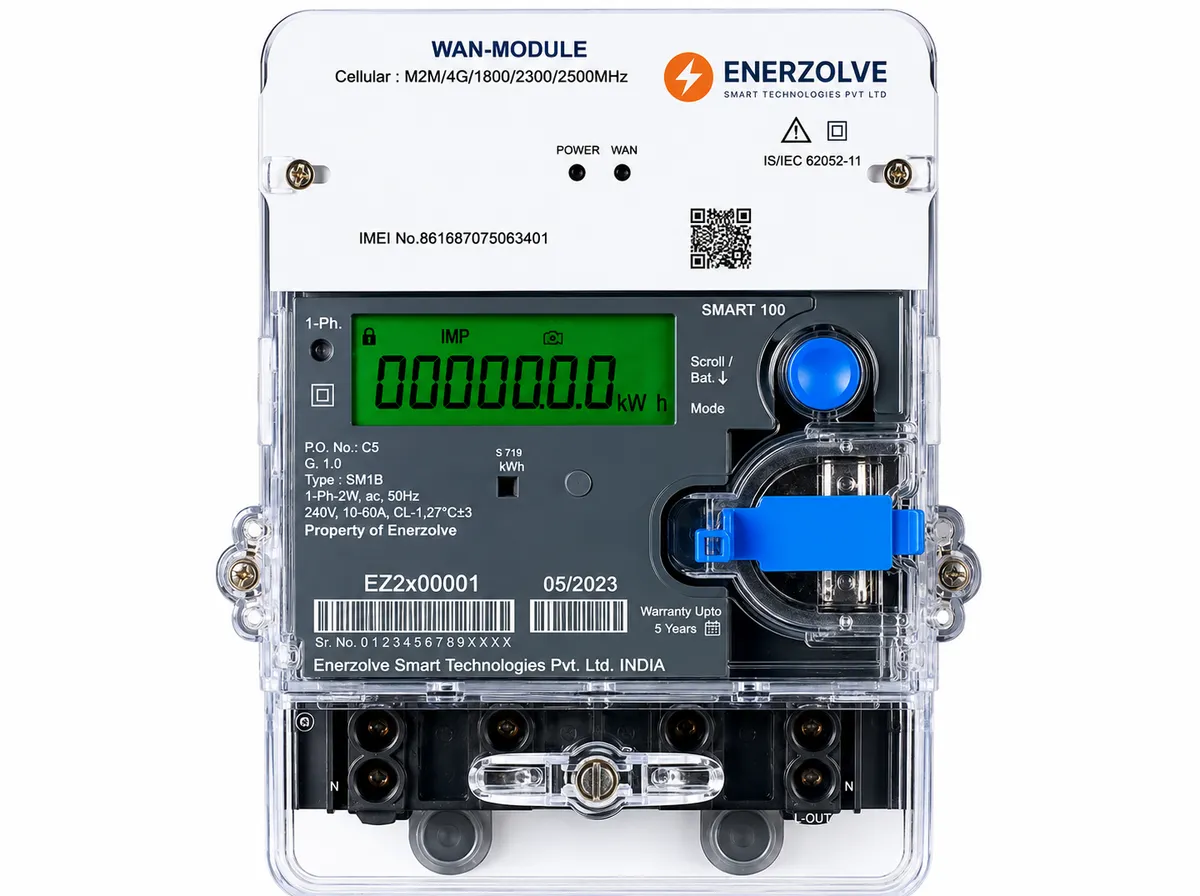

Single-Phase Smart Energy Meter
End-to-End Energy Meter Management Platform
Real-time monitoring, analytics, and control for advanced metering infrastructure — from meter to billing.
Enerzolve smart energy meters are AMI-ready metering systems built for accurate energy measurement, secure communication, and reliable long-term performance. Engineered and certified in India, they give utilities, DISCOMs, and commercial and industrial users precise Class 1.0 metering with full remote capability. Every meter supports the DLMS/COSEM protocol, remote connect and disconnect, over-the-air firmware upgrades, and detailed tamper detection, so a utility can read, manage, and control its entire fleet without a site visit. The single phase smart energy meter is designed for households, apartments, and commercial connections, with prepaid and postpaid billing support and a 4kV impulse-withstand build for harsh conditions. Backed by the Enerzolve AMI 2.0 software stack, including a Head End System and Meter Data Management System, each meter becomes a live node in a complete advanced metering infrastructure rather than a standalone device.
ENERZOLVE
Full AMI Stack for Energy Utilities
The same platform forms a complete advanced metering infrastructure, and the same HES and MDMS layers also power our smart water meters, so utilities run energy and water metering on one platform.
✓
VEE Engine
Validate, estimate and edit reads; auto-flag exceptions.
▣
Analytics & Reporting
Load forecasting, AT&C loss, and revenue assurance.
⧉
DCU / Gateway Management
Provision, monitor and upgrade concentrators remotely.
▤
Billing Extract
Tariff-framed determinants pushed to CIS automatically.
⛨
Data Security
Role-based access, audit trail, encryption at rest.
☰
Multi-tenant SaaS
Multiple utility zones managed from one platform.
Live3,173 kWh · 24H125 / 128 online99.1% push
Product Overview

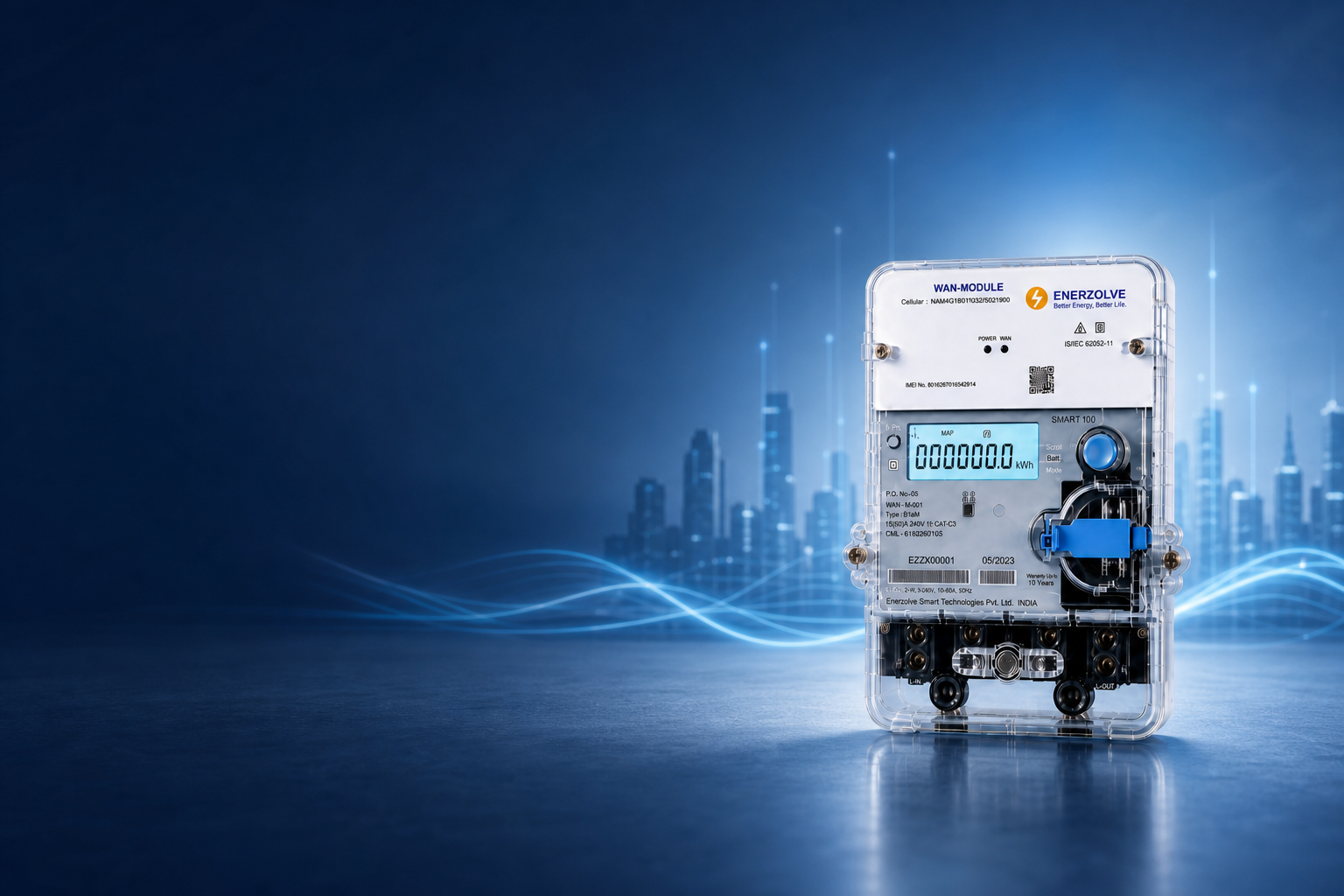

EnerTraq ETM-1060 Smart Energy Meter
Advanced AMI-ready smart energy meter designed for accurate energy measurement, secure communication, intelligent load management, and reliable utility operations.
Key Features
- Class 1.0 high accuracy
- AMI Ready
- Remote Connect / Disconnect
- DLMS / COSEM Protocol
- OTA Firmware Upgrade
- Prepaid & Postpaid Support
- Tamper Detection
- Real-Time Monitoring
Electrical Specifications
- Voltage: 240 V AC
- Current: 10–60 A
- Frequency: 50 Hz
- Accuracy: Class 1.0
- Meter Constant: 3200 imp/kWh
- Current Sensing: Shunt
- Impulse Withstand: 6 kV
- AC Withstand: 4 kV RMS
Communication
- RF Mesh
- PLC
- 4G / NB-IoT
- DLMS / COSEM
- Plug-in Communication Module
- Optical Port
- SIM Support
- Remote Firmware Upgrade
Metering & Measurement
- Active / Reactive Energy
- Voltage / Current
- Power Factor
- Frequency
- Maximum Demand
- TOD Registers
- Load Survey
- Event Logging
Security & Protection
- Magnetic / Theft Detection
- Event Logging
- Alarm Notifications
- First Breath / Last Gasp
- Module Removal Detection
- Password Protection
- Cover Open Detection
- Encrypted Sessions
Mechanical & Environmental
- Dimensions: 95 × 130 × 60 mm
- Weight: ~300 g
- Polycarbonate Enclosure
- Surface Mount
- IP51 Protection
- Humidity: up to 95%
- Indoor / Outdoor Use
- 60-month Warranty
Where It's Deployed
Industries We Serve
EnerTraq ETM-1060 is built to perform across a wide range of residential, commercial, industrial, and utility-scale deployments.
Residential
Accurate single-phase metering for households, apartments, and gated communities with prepaid billing support.
Commercial
Reliable energy tracking for offices, retail spaces, and business complexes with real-time consumption insights.
Industrial
Rugged, high-accuracy metering built to withstand demanding industrial environments and heavy load cycles.
Utility / DISCOM
AMI-ready infrastructure for utilities and DISCOMs enabling remote monitoring, theft detection, and grid analytics.
Certifications
FAQ
Frequently Asked Questions
Common questions about the EnerTraq ETM-1060 smart energy meter, answered.
The ETM-1060 supports Class 1.0 accuracy, ensuring precise energy measurement suitable for utility-grade billing and monitoring applications.
Yes. The meter is fully AMI-ready and supports remote connect/disconnect, OTA firmware upgrades, and real-time consumption monitoring over a secure network.
It supports RF Mesh, PLC, and 4G/NB-IoT connectivity, along with DLMS/COSEM protocol compatibility for seamless integration with utility head-end systems.
Yes, the ETM-1060 supports both prepaid and postpaid billing modes, which can be configured based on utility or consumer requirements.
The meter includes magnetic tamper detection, event logging, and alarm notifications, along with first-breath and last-gasp detection to flag unauthorized interference or power loss.
